Oil And Gas Internals
Separators are the devices that are used in Oil-Gas Separation from the liquid in the good stream. Its basic working principle is related to the different densities of all three phases. This separator vessel consists of different parts or can also be called Separator Internals. Based on different priorities these vessels are classified into many configurations. Below is a standard production separator commonly used in oilfield services. However, the choice and fine-tuning of the specific internals are tailored to each individual case.
Vertical separators are designed primarily for intermediate gas-oil ratios, while horizontal separators are suited for high gas-oil ratios and constant flow well-streams. These high-pressure separators are available in vertical or horizontal configurations, with a wide range of sizes and capacities. We specialize in filling the needs of the petroleum industry, with products designed to withstand the rigors of oil and gas production. We understand that the ability to separate oil, gas, and water in oilfield operations is critical; that’s why we provide a wide range of robustly engineered 2 and 3 phase separators.
Two Phase Separators
Designed specifically for oil and gas. The well stream enters the separator and strikes an inlet deflector which diverts the liquid and gas downstream to the liquid section where it begins to separate. After adequate retention time, liquid builds up in the bottom of the tank and lifts a float, through a linkage to dump the fluid.
Three Phase Separators
Designed specifically for oil, gas and water. Essentially the same as a two phase except the separator has an internal inlet down comer, which carries the fluid to the bottom of the vessel for added retention and separation time.
SCM MULTI-CYCLONE DEVICE
An effective device for the separation of high levels of liquids and / or solids in a single stage
SCM MIST ELIMINATOR
A general purpose Mist eliminator, available in a range of densities and wire diameters in metal alloys
SCM SAND JETTING SYSTEM
A proven arrangement for the effective removal of sediment and sand from the base of horizontal separators.
SCM MATRIX COALESCER PACK
To suit a range of coarse, fine and polishing applications in liquid/ liquid separation duties
SCM PLAIN VV
Higher liquid and gas loads are handled with vanes for horizontal and vertical gas flow or fouling applications.
SCM VANE INLET DEVICE
An industry standard device for the effective distribution and momentum dissipation of incoming multi-phase feeds.
SCM DOUBBLE POCKET VANE PACK

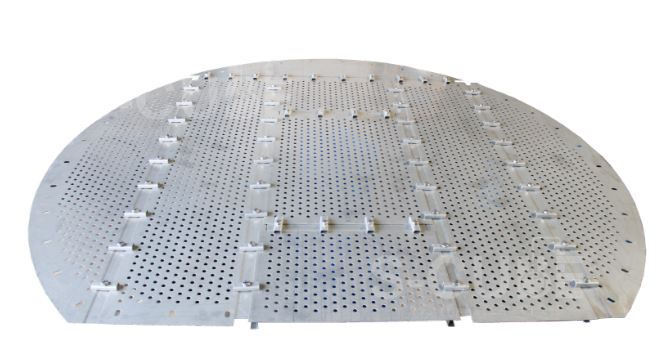

SCM DUAL PERFORATED BAFFLE PLATE
SCM PLATE PACK
SCM CYCLONE INLET DEVICE
SCM BI-VANE INLET DISTRIBUTOR
SCM SINGLE PERFORATED BAFFLE PLATE
